Corrugated Paper Briquette Press

Transform Cardboard & Paper Waste with Industrial Briquetting Technology

Transform corrugated paper and cardboard waste into dense, stackable biofuel briquettes with the UT-100 Corrugated Paper Briquette Press. This industrial briquetting machine reduces disposal costs, reclaims up to 80% of warehouse space, and creates a new revenue stream from recycled paper.

The Problem – Hidden Costs of Corrugated Paper Waste

Loose corrugated paper and cardboard waste causes:

1. High disposal fees from frequent dumpster pickups
2. Valuable warehouse space consumed by bulky, low-density waste
3. Labor costs for constant waste handling and cleanup
4. Rising environmental compliance fees and landfill restrictions

You’re not just disposing of waste—you’re losing potential profit.

The Solution – Corrugated Paper Briquette Press

Binderless Briquetting Technology – Nature Does the Work

Unlike conventional balers that simply squeeze material, the UT-100 uses controlled hydraulic pressure to generate heat—activating the natural lignin within paper fibers. This biological polymer acts as a natural glue, fusing shredded corrugated paper into solid, durable briquettes.

Why UT Machinery’s binderless briquetting is different:

• No chemical binders = lower operating costs and pure briquettes
• Pressure curve optimized specifically for cellulose fibers
• Consistent results across varying material densities

The result: rock-solid briquettes that hold together during transport and storage, ready for sale or recycling.

90% Volume Reduction – Reclaim Your Space

Loose corrugated paper is mostly air. The UT-100 briquetting press compresses it into compact cylindrical briquettes:

• Recover up to 70-80% of previously wasted floor space
• Reduce transportation and disposal costs by up to 80%
• Stackable briquette logs for efficient storage and handling
• What used to require 10 truckloads now fits in just one.

Industrial-Grade Briquetting Machine Construction

• Heavy-duty steel frame engineered for high-pressure briquetting
• Premium hydraulic components from trusted global suppliers
• Simplified design with fewer moving parts = less maintenance
• 24/7 operation capability for high-volume facilities

Multi-Material Briquetting Versatility

Handles multiple waste types efficiently:

Material	Common Application
Corrugated cardboard (OCC)	Trim waste, misprints, die-cut scrap
Paper dust and sludge	From printing and converting operations
Office paper waste	Clean paper for high-value briquettes
Sawdust and wood shavings	Combined with paper for mixed biomass
Rice husks and agricultural fibers	Agricultural waste briquetting

One briquetting machine, multiple waste streams, one complete solution.

Energy-Efficient Briquetting Operation

• 11 kW motor engineered for low power consumption
• Hydraulic system optimization reduces power draw during idle cycles
• High industrial output at minimal energy cost
• Lower energy costs mean faster ROI on your briquetting equipment investment.

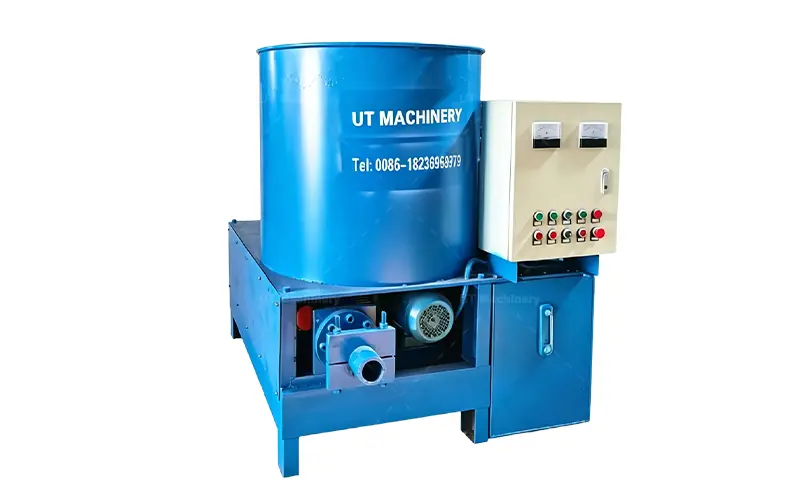

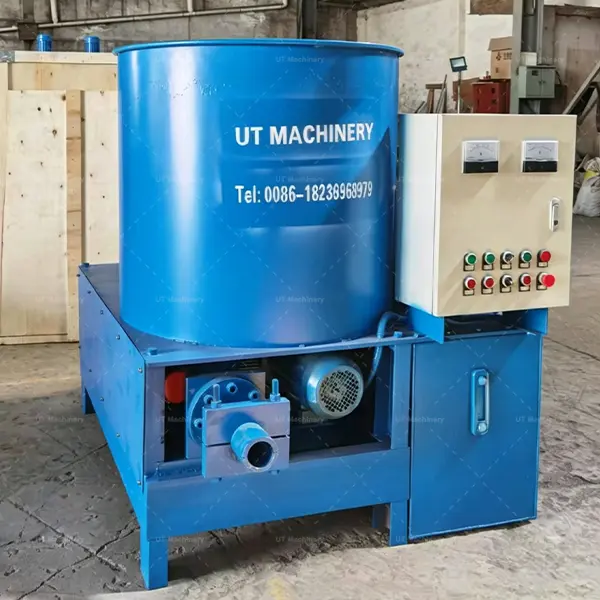

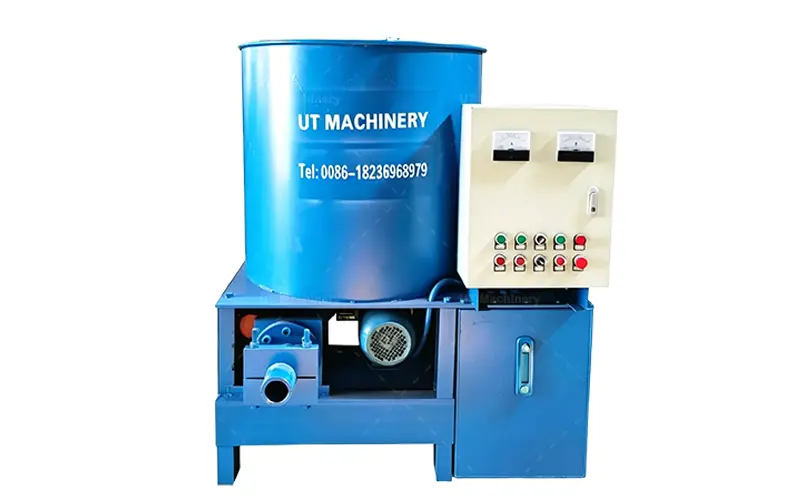

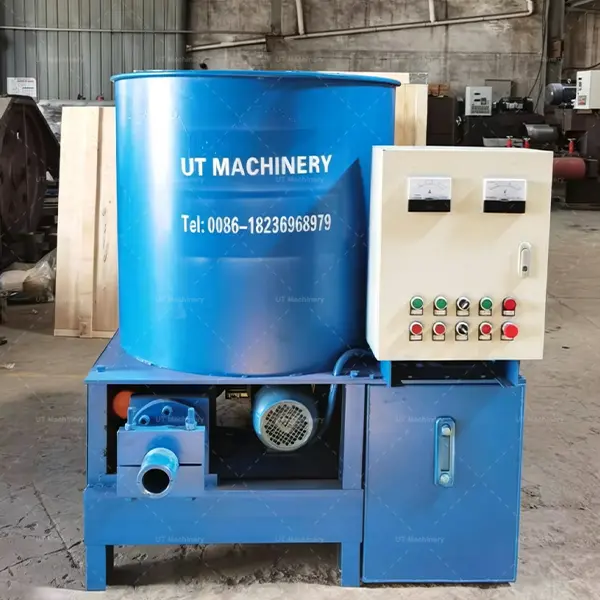

Technical Specifications – UT-100 Briquette Press Machine

Specification	Detail
Model	UT-100
Machine Type	Hydraulic Piston Corrugated Paper Briquette Press
Briquetting Process	Binderless (natural lignin activation)
Briquette Shape	Cylindrical

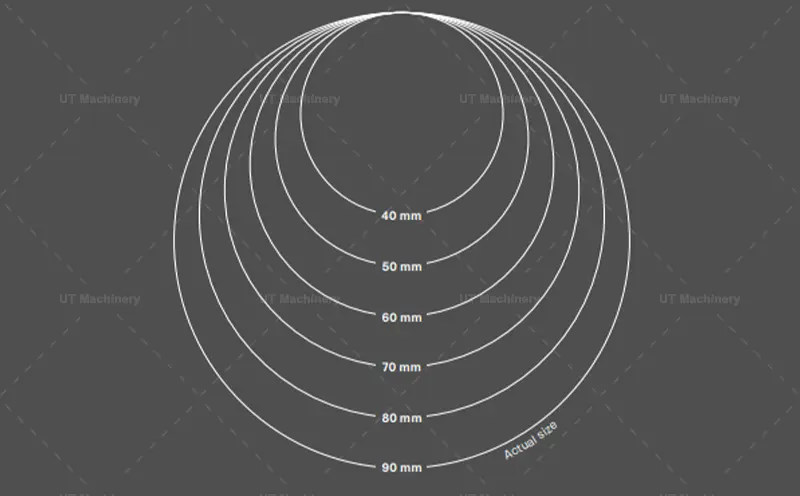

Briquette Diameter	70 mm（30-100mm，can be customized）
Production Capacity	100-500 kg/h (material dependent)
Main Motor Power	11 kW
Machine Weight	700 kg
Dimensions (L×W×H)	1310 × 850 × 925 mm
Required Material Moisture	12% – 18%
Binder Requirement	None (natural lignin binding)

Need a custom voltage configuration? [Contact our engineering team]

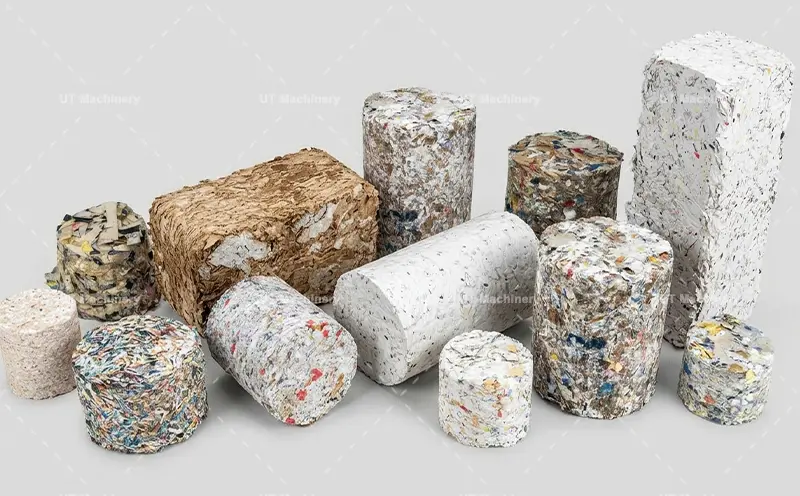

The End Product – From Waste Paper to Valuable Resource

• Dimensions: 70mm diameter × variable length
• Density: 5-10x higher than loose material
• Calorific Value: ~4,000–4,500 kcal/kg (comparable to low-grade coal)
• Three ways to profit from your paper briquettes:
• Reduce disposal costs — fewer pickups, less labor, smaller dumpsters
• Sell as biofuel to industrial boilers or biomass plants
• Use for on-site heating — offset energy costs in winter months

Applications – Who Uses This Briquetting Equipment

Industry	Application	Key Benefit
Corrugated Box Manufacturing	Trim waste, misprints, die-cut scrap	Reduce waste hauling costs by 80%
Printing Houses	Paper trim, misprints, clean room waste	Sell briquettes as additional revenue
Packaging Plants	Incoming cardboard waste	Reclaim warehouse space
Recycling Centers	Material densification for transport	Lower shipping costs per ton
Distribution Warehouses	Ongoing corrugated paper waste	Eliminate daily dumpster pickups
Woodworking Shops	Sawdust & paper mixed waste	One machine for multiple waste types

What Customers Say About Our Briquetting Machine

“We were spending over $2,000 monthly on cardboard disposal. This Corrugated Paper Briquette Press paid for itself in 8 months. Now we sell briquettes locally.”

— Operations Manager, Packaging Facility, Thailand

“Machine arrived well-packaged and running within hours. Simple, sturdy, delivers exactly as promised. The briquetting process is cleaner than we expected.”

— Owner, Recycling Center, Brazil

“We were skeptical about binderless briquetting, but the UT-100 produces rock-solid briquettes from mixed paper waste. Two years later, it’s still running strong.”

— Plant Director, Commercial Printing, Poland

See what the UT-100 can do with YOUR material. [Request a free test] →

At UT Machinery, we don’t build machines for trade shows—we build them for factory floors.

Every UT-100 Corrugated Paper Briquette Press is engineered with one philosophy: deliver maximum ROI with minimum complexity.

When you choose UT Machinery, you’re getting a briquetting solution backed by decades of engineering experience and a commitment to your success.

Every Corrugated Paper Briquette Press from UT Machinery delivers ROI from day one.

Ready to Transform Your Corrugated Paper Waste?

Stop losing money on loose cardboard and paper. Start profiting from industrial briquetting with the UT-100 Corrugated Paper Briquette Press from UT Machinery.

Frequently Asked Questions About Paper Briquetting Press
